Thursday, February 13, 2014

Rear Sight Changed

Feb/13/2014
The rear sight has been changed to this newer one.

The old sight was removed from the top brass strip and replaced with this one.  This sight is a bit fragile and this pistol will need it's own storage case for protection.

Each 1/4 turn of the thumb nut moves the sight tube up or down 0.0078125 inch.















Close up from the left side.
Base was modified to allow further downward movement (notched) to simulate the older sight tube.  The base was then soft soldered to the top strip.
 Right side view.
Top view.
The screw slot on the left is oval to allow for windage adjustments.
How it looks to the shooter.
Everything is in alignment vertically but the may not be.(Maybe it is now)

What you cannot see is that the top brass strip is adjustable for windage. There is a small "notch" that matches at the back of the frame and brass piece.

IdeZilla

Comments are welcomed.

Tuesday, February 11, 2014

Prototype Rear Sights

I started playing with some pieces of brass tubing and 22MAG brass.
I came up with this rear type of sight with elevation only.
Brass tubing attached to the base with a 6-32 US thread screw in the center.
A spring surrounds that base tube and pushes up on the slider tube.
The slider can move up or down about 1/4 inch.
The thumb nut pushes the slider down against the spring, hopefully holding it in place.
The loop keeps the 22MAG peep tube pointing forward.



Left Side, Full Up Position.












Left Side, Full Down Position












Left Rear, Full Down Position

Left Rear, Full Up Position












Rear View, through the 22MAG case, as a rear peep sight.














Pulling down on the slider spring shows the inner base tube.

IdeZilla

Reminds me of Steam Punk stuff.














Feb/12/2014

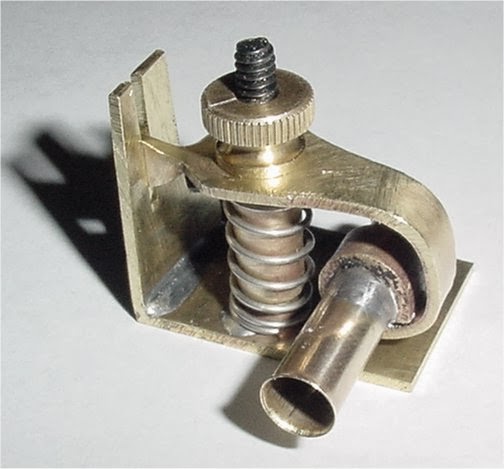

Here is another one, this is fun.
This sight has been designed to fit at the rear of  "Underhammer Pistol, in progress".

Rear View.
It needs a lot of cleaning and polishing, it is rough.
Slider is positioned a bit higher, near the top of movement.

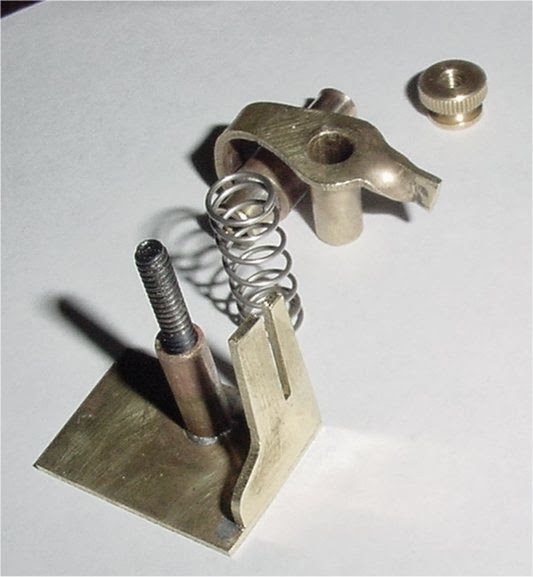

Here are the pieces.

Sight tube is a 22MAG brass that was picked up at the shooting range. Screw is 6-32 US thread.
Slider tube is larger than base tube. Base tube and slider tubes are soldered with low temperature silver plumbers solder, the rest with soft solder. Spring came from an assortment box from the hardware store.

The reason for the curly sight tube arm is for small bending amounts to align this sight tube to the front sight.








Front - Left Side View.
Sight tube is almost at the bottom of its movement.
Rear - Left Side View.
There is room for tick marks on the outside of the slide guide panel.















Feb/15/2014
Here is number three, this should be all for a while.
 Rear View.
Front View.
















Sept/9/2014
#4
.22 MAG brass for sight tube.
6-32 US screw for adjustment.














































IdeZilla

Comments are welcomed.

Thursday, February 6, 2014

Brass Rear Sight Up Close

Here is that brass rear sight up close.
Not much text just pictures.
Yes, the tang is removable.

All Pieces.
 Lead (63/37) Soldered to tang.
Slider guides are soldered to sight frame.
6-32 US screw.
Solder showing on the rear frame guide.
 Screw flush with rear of sight frame
 Solder showing on the two frame guides.
 Slight dovetail on rear sight guide.
 Sliding piece

 Slight dovetail on sliding piece
 Approximately 90 degrees for slider
 Approximately 90 degrees for frame
Thumb Nut and Washer exert pressure on slider holding it into the rear dovetail. Thumb Nut purchased at hardware store.
Sight to stock clearance.

IdeZilla, Feb/6/2014

Comments Welcomed.
